CX600M Wood
Mid-Tower Gaming Case
CX600M Wood ARGB (Wooden side bar on the front)
CX600M ARGB (Metal side bar on the front)

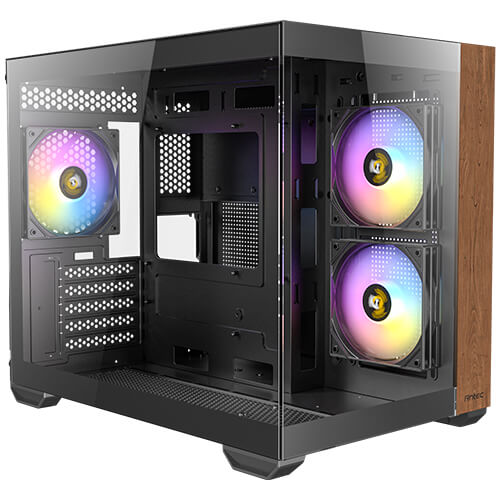

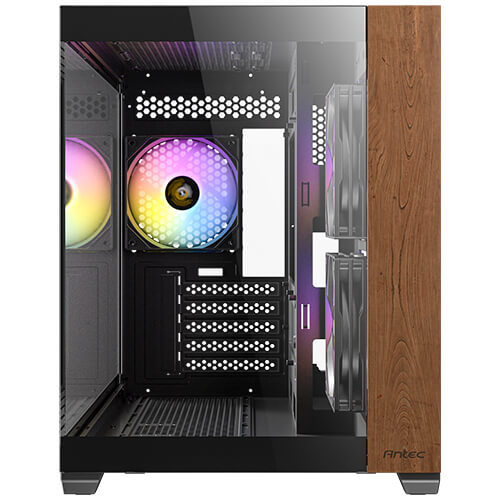

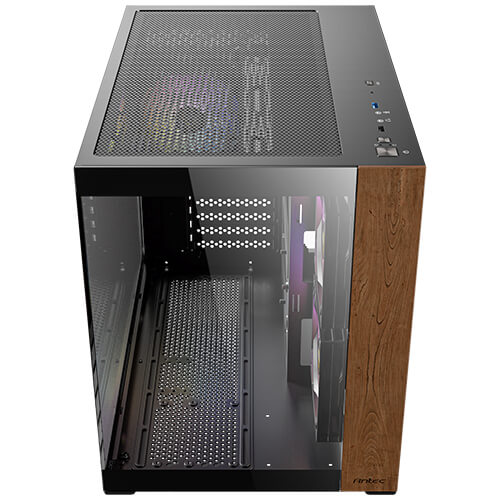

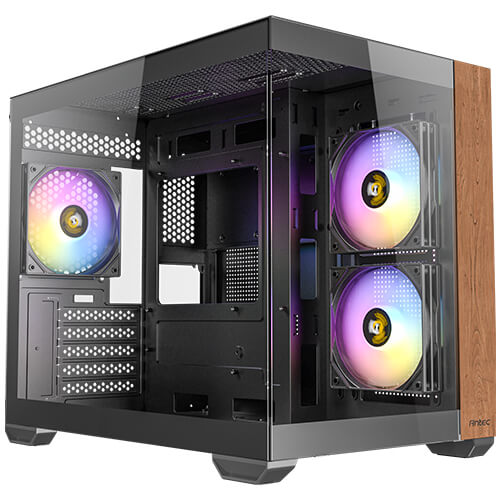

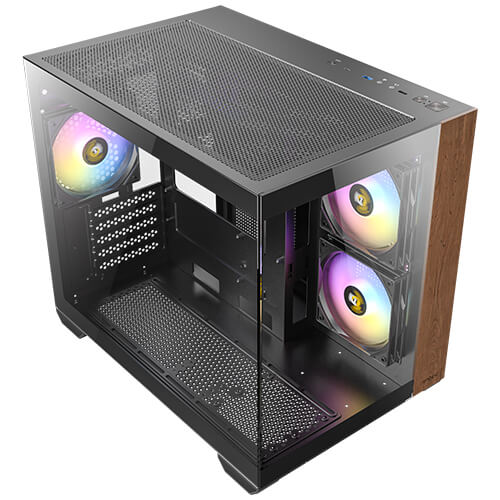

Panoramic 270° View With Exotic Wood

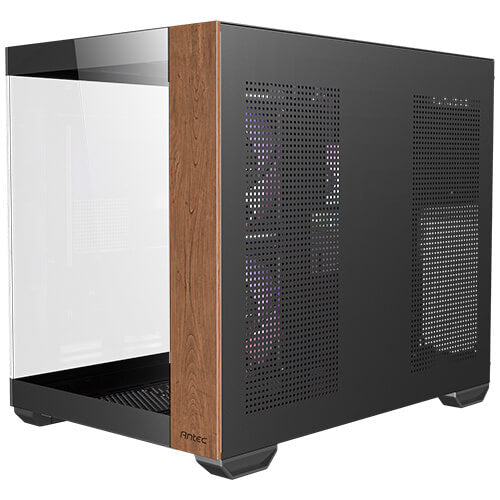

CX600M Wood ARGB's seamless left and front glass panels offer an unobstructed view of your build, creating a stunning showcase for your components. Right side of front is made of wood that could be seamlessly integrated into your interior design style.

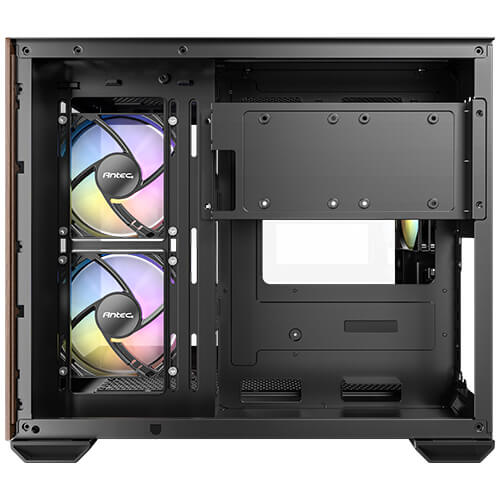

Dual Chamber
Dual chamber design ensures independent cooling for CPU/GPU on the left and PSU / Drives on the right.
Vertical Cooling with Massive Air Intake
A large amount of air is taken in through the mesh on bottom and side, facilitating heat dissipation and protect hardware from overheating.

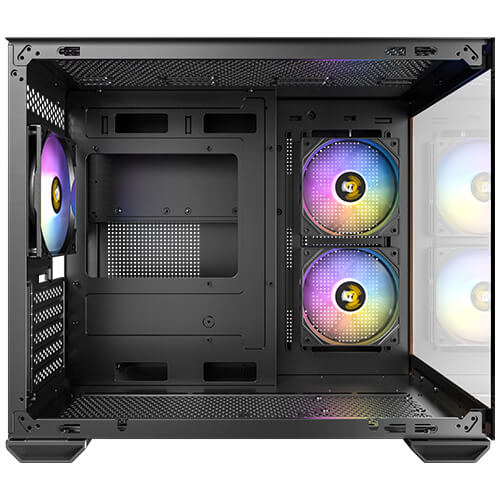

Pre-Installed 3 x 120mm ARGB Fans
Use the major case fan to daisy-chain the other two fans for ARGB sync and create your personal style.
Support 2 x Water Cooler
Support simultaneous installation of 360mm radiator on top and 240mm radiator on side.
EVA PSU Cushion Pads
With EVA anti-vibration foam on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
Powerful Air Cooling Compatibility
Max. CPU Cooler Height : 160mm
Compatibility
-
Motherboard supportMicro-ATX, ITX
-
CPU cooler max height≤ 160mm
-
GPU max length≤ 410mm
-
2.5"2
-
3.5”/2.5”1
-
Power Supply max length(Include cable)≤ 240mm
Ample Cable
Management Space
99mm of cable management space enusres your PC build looks neat.
SPECIFICATIONS
| Dimensions |
436 x 290 x 370mm (DWH) |
| Form Factor |
Mini Tower |
| Materials |
Steel + Glass + Wood |
| Mainboard Support |
Micro-ATX , ITX |

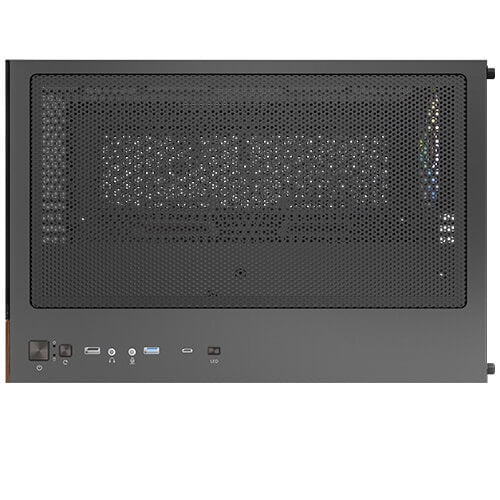

| Front Access & Controls |
Power, Reset, LED Control Button, USB 2.0 x 1 (CX600M Wood ARGB) or USB 2.0 x 2 (CX600M ARGB), USB 3.0 x 1, Type-C 5Gbps x 1, MIC / HD-AUDIO |
| Side Panel |
4mm Tempered Glass |
|
| Drive Bays |
| Expansion Slots |
5 |
| 3.5" |
1 |
| 2.5" |
2 |
|
| Fan |
| Top |
3 x 120mm / 2 x 140mm |
| Side |
2 x 120mm / 2 x 140mm |
| Bottom |
3 x 120mm |
| Rear |
120mm |
| Included Fan(s) |
2 x 120mm ARGB reverse fans on right side + 1 x 120mm ARGB fan in rear (CX600M Wood ARGB) |
|
| Radiator Support |
| Radiator Support |
| Top |
120 / 140 / 240 / 280 / 360mm |
| Side |
120 / 140 / 240 / 280mm |
| Bottom |
120 / 240 / 360mm |
| Rear |
120mm |
|
| Clearance |
| Max GPU Length |
≤410mm |
| Max CPU Cooler Height |
≤160mm |
| Max PSU Length |
(Include cable) ≤240mm |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
6.25 kg (CX600M Wood ARGB)
|
| Gross Weight |
7.32 kg (CX600M Wood ARGB)
|
| Warranty |
1 Year |
| UPC# |
0-761345-10138-7 (CX600M Wood ARGB) |
|
