Description

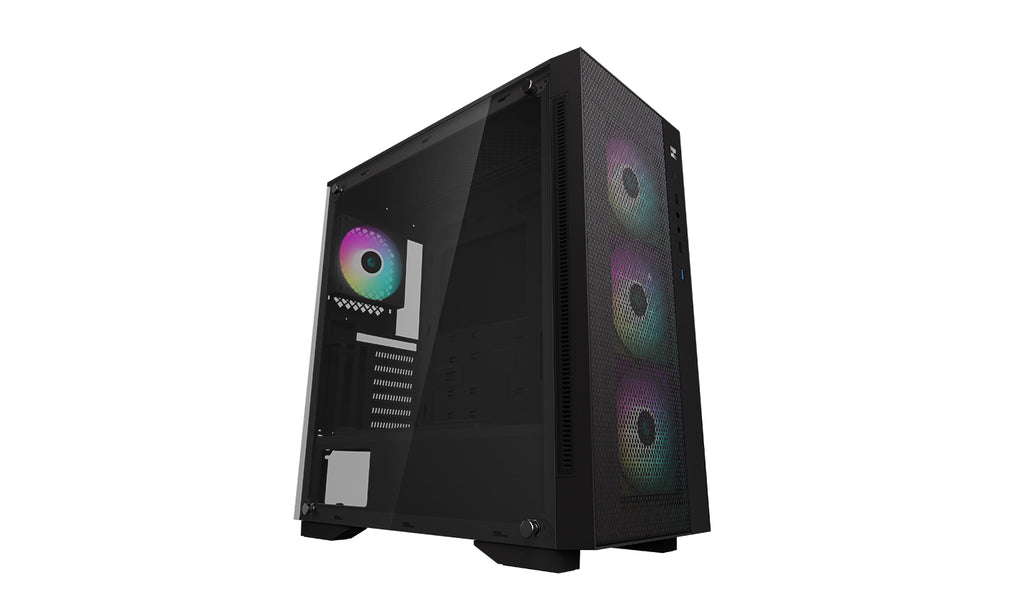

MATREXX 55 MESH ADD-RGB 4F is a high airflow case that comes with included A-RGB lighting system and full size tempered glass.
4mm Thick Tempered Glass
Full sized 4mm thick, tempered glass side panel gives the case a unique look to perfectly show off your inner structure
ADD-RGB Lighting System Included
4 ADD-RGB fans are included in the system, as well as 2 control approaches.
Case button control：
connect fans to case control module, and power up with PSU SATA cable, then control with RGB button.
Motherboard control：
connect fans to motherboard header and use software to control. ( Please note: When using motherboard control, disconnect PSU SATA cable.)
Cooling Compatibility:
Supports the installation of liquid cooler:
1
120/140/240/280mm radiator liquid cooling system on the top2
120mm radiator liquid cooling system at the rear3
120/140/240/280/360mm radiator liquid cooling system at the frontSupports the installation of cooling fans:
1
2×120/ 2×140mm fan on the top2
1×120mm fan at the rear3
3×120mm/3×140mm fan at the frontPSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

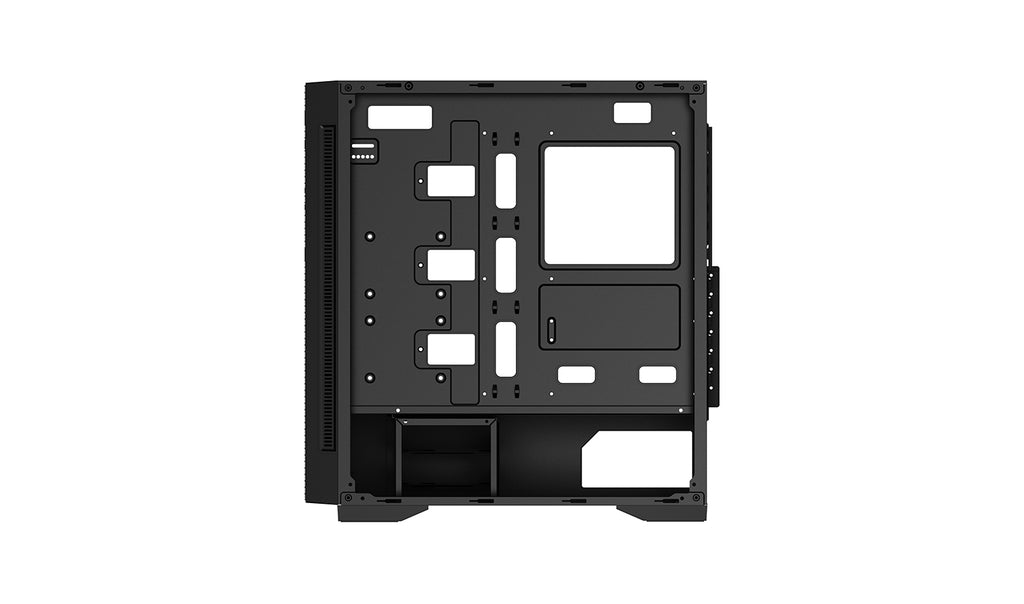

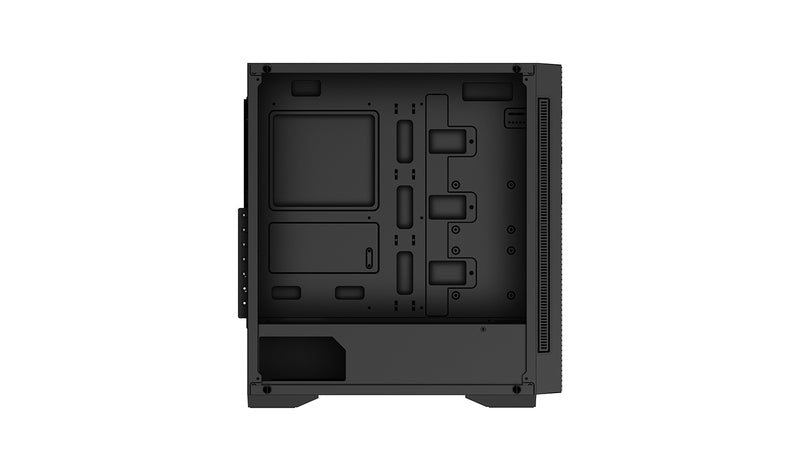

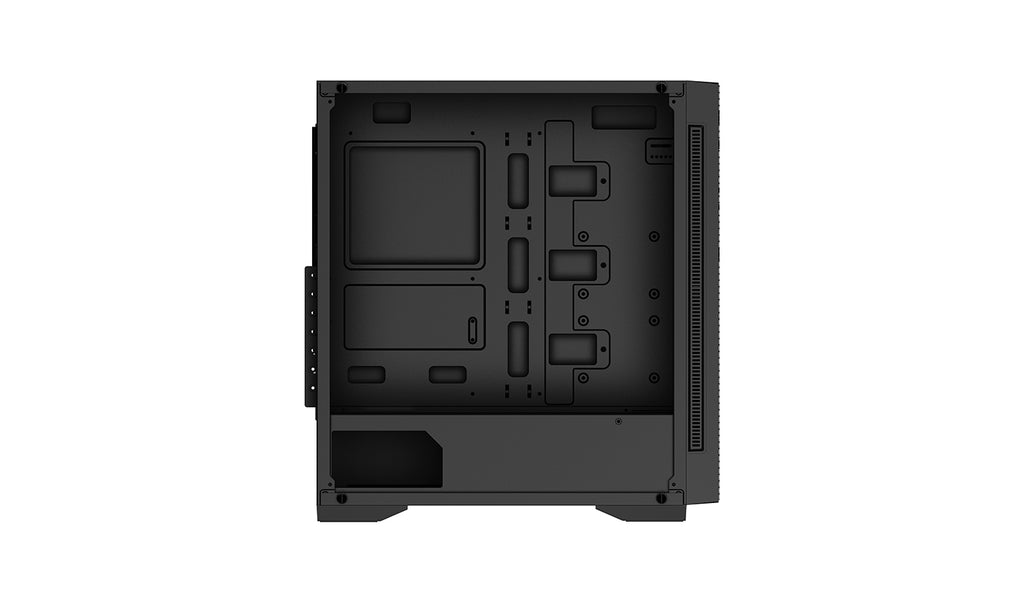

Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (23mm clearance)
FEATURES
Compact ATX case that supports motherboards up to E-ATX.
4mm Tempered Glass providing great view and safety.

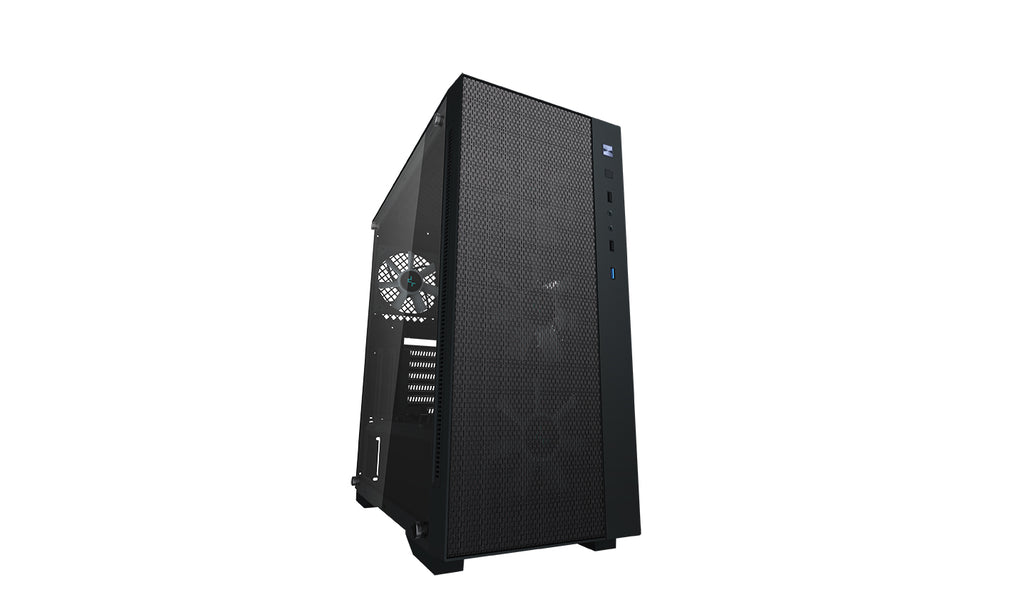

Mesh front panel providing massive cooling compatibility.
4 A-RGB fans included, with convenient control.
210mm wide tower compartment with 23mm cable management clearance.
A magnetic dustproof net on top and dust-filters at the front and bottom.
4mm Tempered Glass providing great view and safety.
Mesh front panel providing massive cooling compatibility.
4 A-RGB fans included, with convenient control.
210mm wide tower compartment with 23mm cable management clearance.
A magnetic dustproof net on top and dust-filters at the front and bottom.
Techical Spec
Technical Spec
| Product Dimensions | 460×215×480mm(L×W×H) |
| Net Weight | 7.2Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX |
| Front I/O Ports | USB2.0×2、USB3.0×1、Audio×1、Mic×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Pre-Installed Fans | Front: 3×120mm Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120mm |
| CPU Cooler Height Limit | 160mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2（maximum length: 170mm） |
| EAN | 6933412714149 |
| P/N | DP-ATX-MATREXX55-MESH-AR-4F |
Product Dimension
