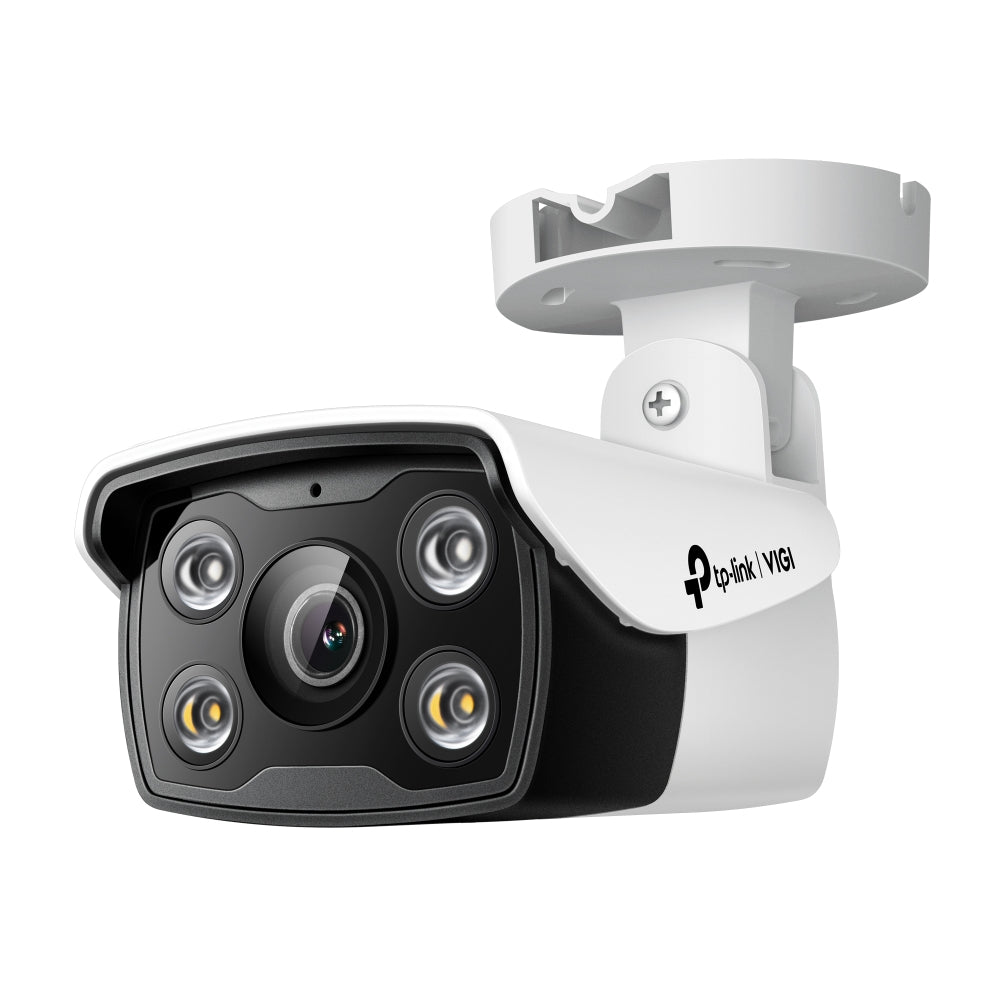

TP Link VIGI C340 (4mm) 4MP Outdoor Full-Colour Bullet Network Camera
- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enter an area you've set, or obstructs the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

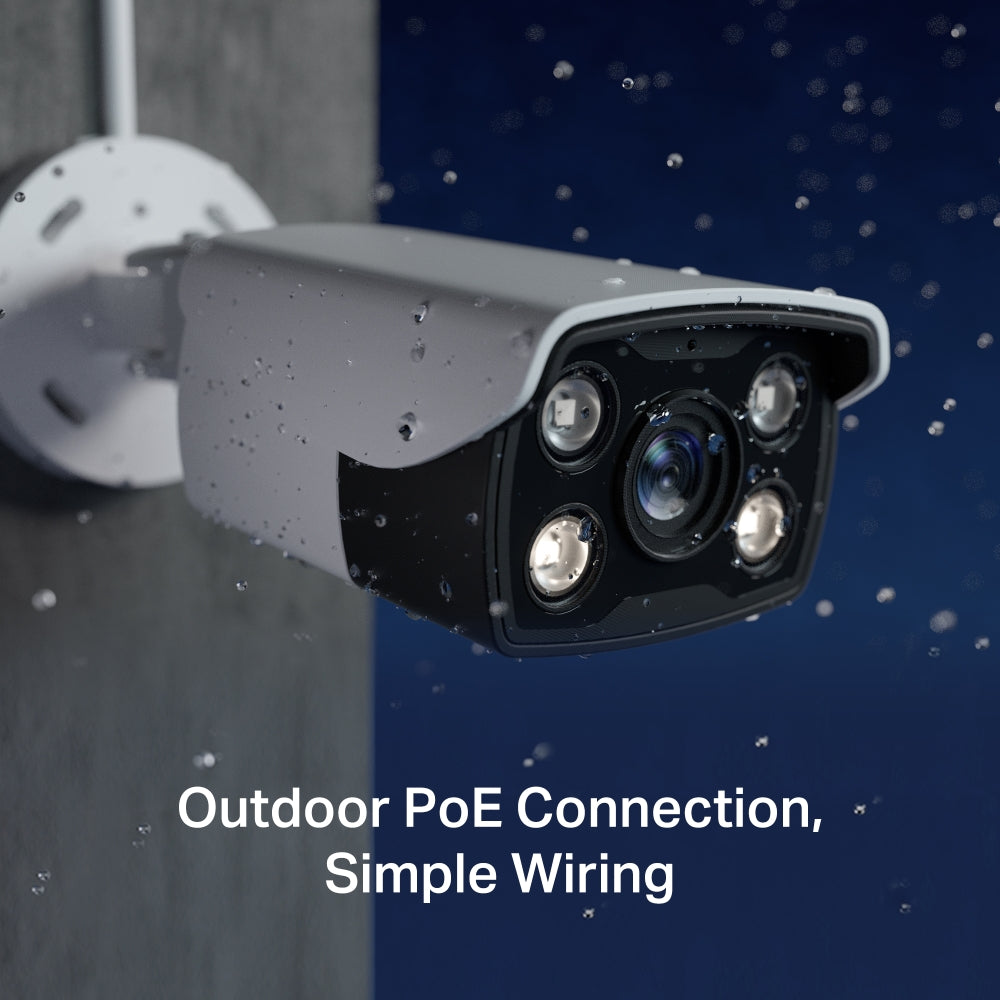

- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

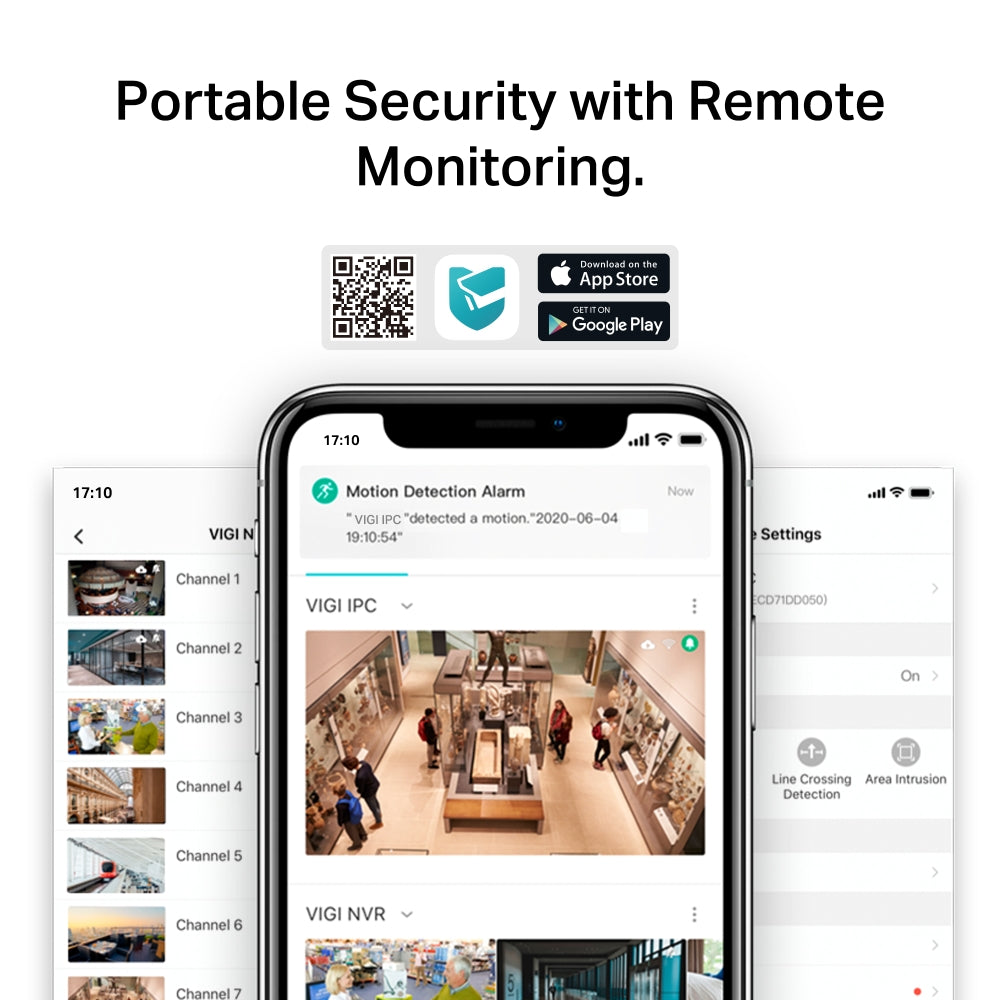

- VIGI App: Manage your security from the palm of your hand with the VIGI app.
| CAMERA |
| Image Sensor |
1/3” Progressive Scan CMOS |
| Lens |
Fixed focal lens (2.8 mm / 4 mm / 6 mm) |
| Aperture |
2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6 |
| Lens Mount |
M12 |
| Viewing Angle |
(2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59° |
| Day/Night Mechanism |
IR Cut Filter |
| IR Working Distance |
30m |
| Illumination Distance |
30 m |
| Minimum Illumination |
0 lux with IR/white Light |
| Weatherproof Rating |
IP66 |
| Digital Noise Reduction |
3D DNR |
| WDR |
DWDR |
| NETWORK |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API |
ONVIF |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| GENERAL |

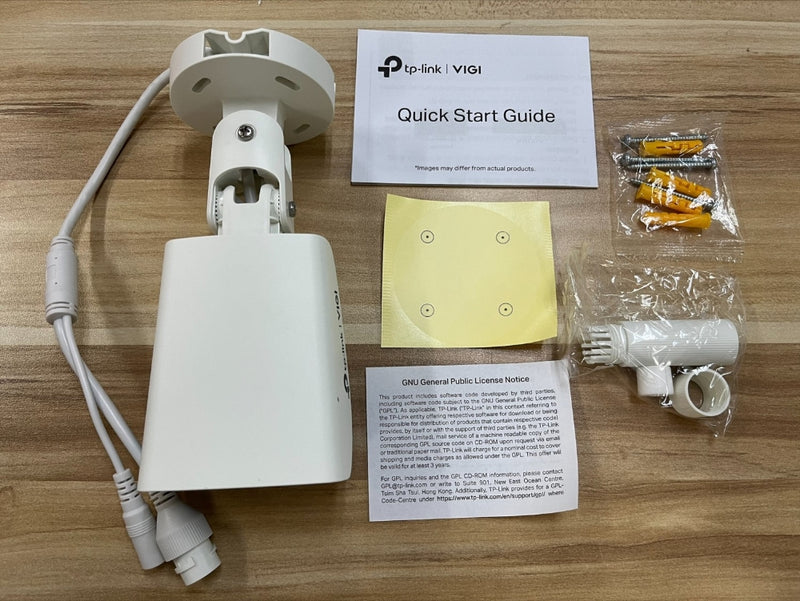

| Package Contents |
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
| Operating Temperature |
-30–60 °C |
| Certifications |
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Dimensions( H X W X D ) |
78 × 70 × 174 mm |
| Material |
Plastic |
| Weight |
195g |
| General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
|
| Power Consumption |
12V DC: Max 7.5W
PoE: Class 0
|
| VIDEO/IMAGE |
| Video Compression |
Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions |
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240 |
| Video Streaming |
Main Stream
Sub-Stream |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate |
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
| SMART FEATURE-SET |
| Smart Event |
Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event |
Motion Detection, Camera Tampering Detection, Exception ( illegal login) |
| Linkage Method |
Trigger Notification: ONVIF, HTTPS |
| Region of Interest |
1 Region |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input |
Built-in Microphone |
| Audio Output |
Built-in Speaker |
| Button |
Reset Button |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
