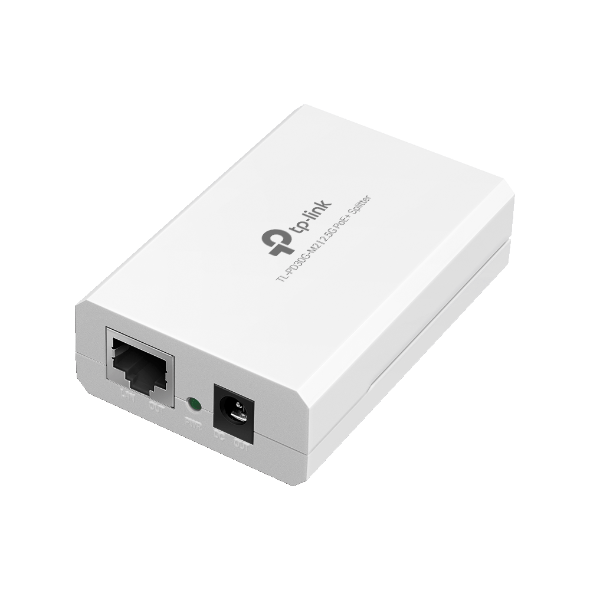

TP-Link TL-PD30G-M2, 2.5G PoE+ Splitter

TP-LINKSKU: TL-PD30G-M2

2.5G PoE+ Splitter

HARDWARE FEATURES
Interface	1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port 1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port 1 12V / 9V / 5V DC OUT Power Output Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Power Supply	12VDC 2A, 9VDC 2A, 5VDC 2A
Basic Function	Compatible with IEEE 802.3af/at compliant PSEs Delivers power up to 100 meters Optional 12VDC, 9VDC or 5VDC power supply
LED Indicator	ON: Connected to PSE correctly Off: No PSE is connected
Dimensions ( W x D x H )	3.22.10.9 in (80.85424 mm)

SOFTWARE FEATURES
Basic Function	Compatible with IEEE 802.3af/at compliant PSEs Delivers power up to 100 meters Optional 12VDC, 9VDC or 5VDC power supply

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-PD30G-M2 Power Cord Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: -5°C~45°C (23°F~113°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
