Description
CK500

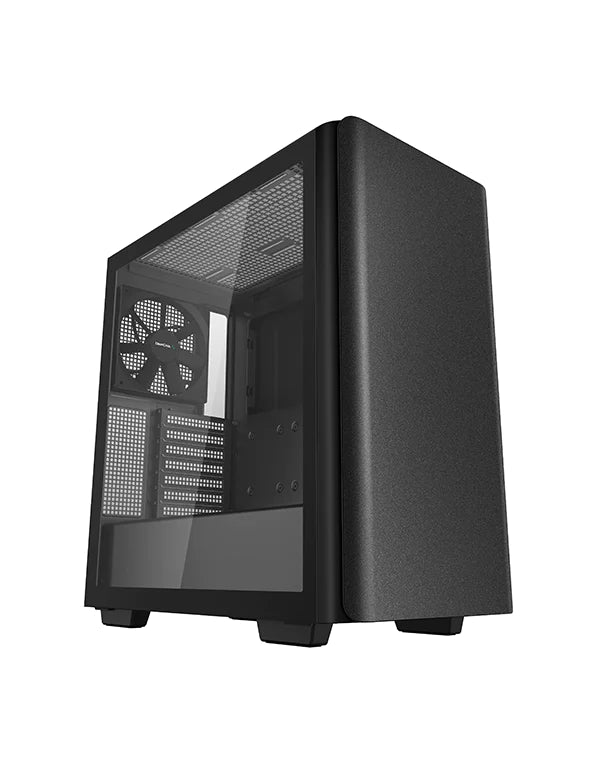

The DeepCool CK500 Mid-Tower Case is a sleek and minimal case that delivers balanced airflow and noise performance for the modern-day builder with two pre-installed 140mm performance fans.
DETAILS MAKE THE DIFFERENCE
The DeepCool CK500 Mid-Tower Case is a sleek and minimal case that delivers balanced airflow and noise performance for the modern-day builder with two pre-installed 140mm performance fans.
QUICK-RELEASE SOLID FRONT PANEL
Sleek curved edges offer a premium look and feel in a minimalistic design while still featuring large ventilation for more airflow. The solid steel panel adopts an easy quick-release magnetic connection.

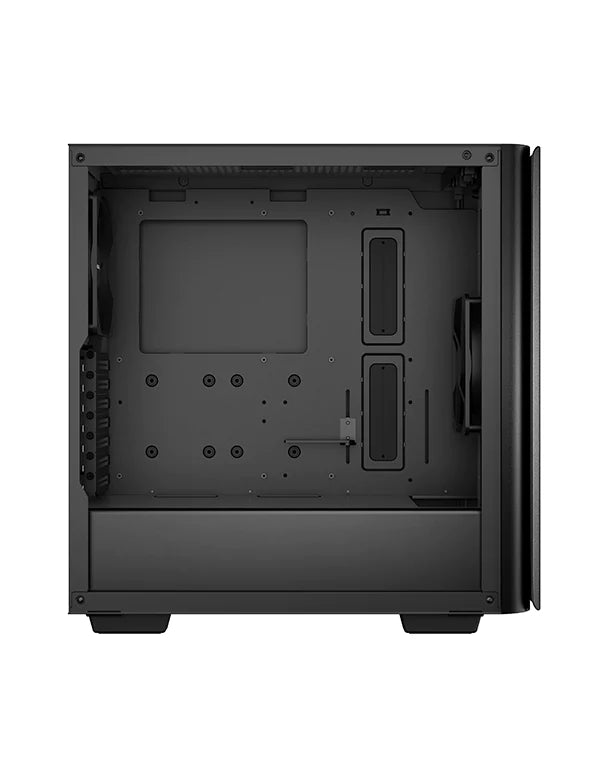

WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK500 provides ample space without being too bulky.

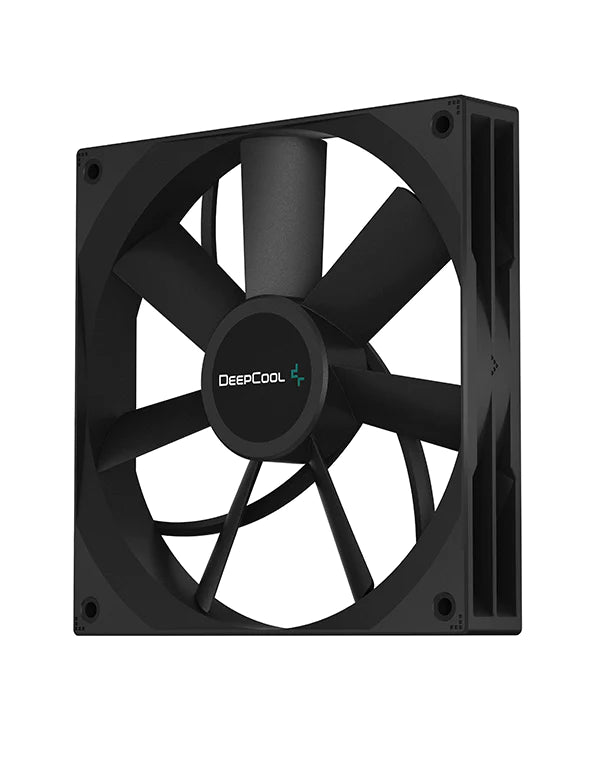

BIG AIR COOLING
Two pre-installed DeepCool 140mm
airflow-focused fans help concentrate cooling performance for lower temperatures and noise levels.
airflow-focused fans help concentrate cooling performance for lower temperatures and noise levels.
CHOOSE YOUR COOLING CONFIGURATION
The CK500 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.
6120mm
5140mm
1360mm
2280mm
2240mm
3140mm
3120mm
CONVENIENT STORAGE OPTIONS
Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.
Technical Spec
| Product Dimensions | 456×230×471mm(L×W×H) |
| Net Weight | 8Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×2、Audio×1、TypeC×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 1×140mm Rear: 1×140mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
| EAN Code | 6933412714866 |
| PN Code | R-CK500-BKNNE2-G-1 |
Product Dimension
