Mercusys AX3000 Dual-Band Wi-Fi 6 Router

Roll over image to zoom in Click on image to zoom

Mercusys AX3000 Dual-Band Wi-Fi 6 Router

Name: Mercusys AX3000 Dual-Band Wi-Fi 6 Router
Brand: TP-LINK
SKU: MER-MR80X
Price: 99.0 NZD
Availability: InStock

TP-LINKSKU: MER-MR80X

MR80X

AX3000 Dual-Band Wi-Fi 6 Router

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

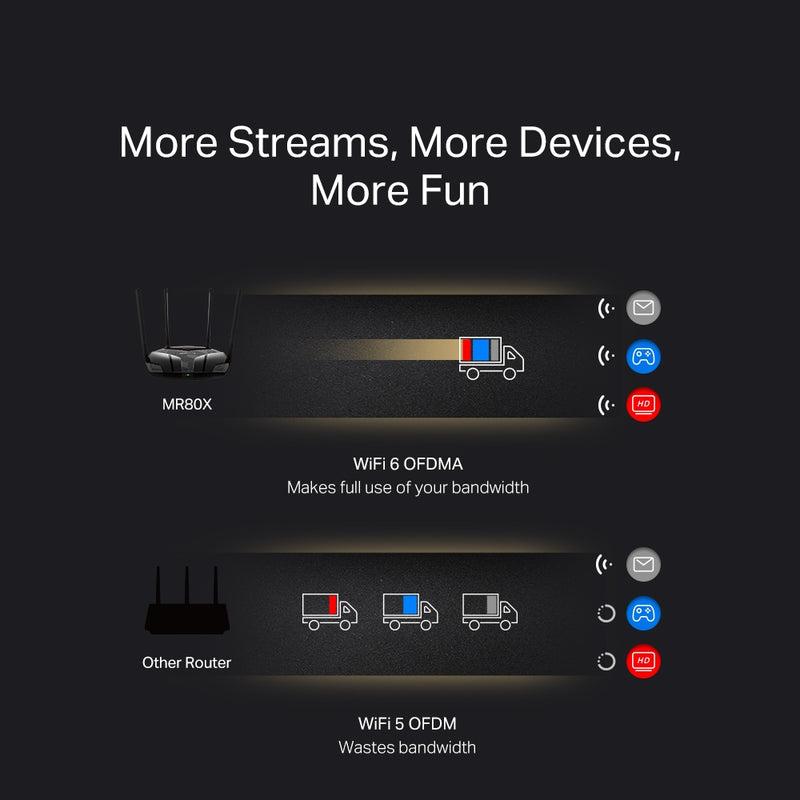

MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
SMART CONNECT – Intelligently chooses the best available band for each device

Wireless

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)

Wireless Security

WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Sever

OpenVPN, PPTP supported

Hardware

Dimensions (W X D X H)

8.2 × 6.8 × 1.6 in
(208.8 × 171.6 × 41.7 mm)

Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AX3000 Wi-Fi 6 Router MR80X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
