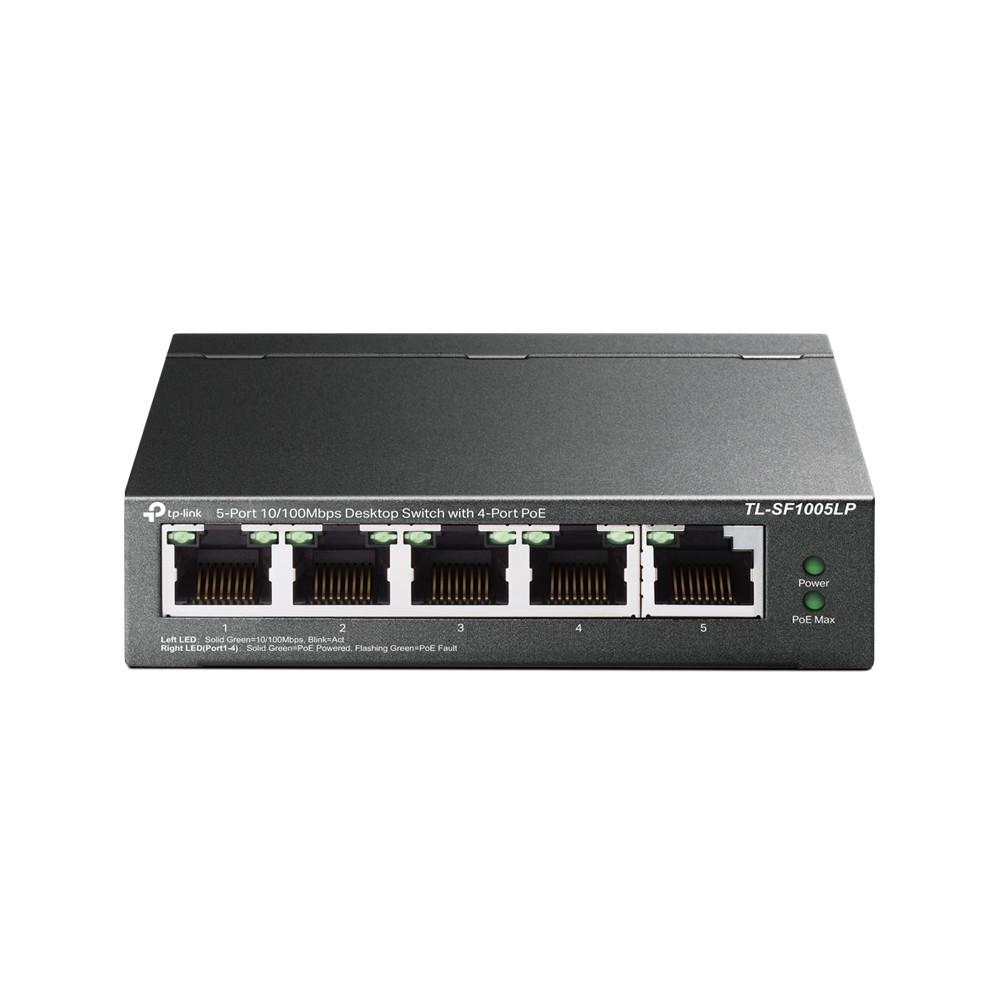

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

Roll over image to zoom in Click on image to zoom

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

TP-LINKSKU: TL-SF1005LP

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5× 10/100 Mbps RJ45 ports
4× PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250 m data and power transmitting range under Extend Mode^**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports^*
Plug and play with no configuration required

Learn more about TP-Link PoE technology >

Professional Fast Ethernet Switch with 4 PoE Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

41 W PoE Budget*
Plug and Play
Transmission Distance up to 250 m**
One-Click Priority Mode
Intelligent Power Management
Durable Metal Casing

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Surveillance

IP Camera

Conference Calls

IP Phone

Wi-Fi Coverage

Access Points

4 PoE Ports
Up to 15.4 W on Each Port
Total 41 W Power Budget

TL-SF1005LP

Router

Internet

lug and Play, No Configuration Required

Plug In
Connect Devices

IP phone

IP Camera

Access Points

Internet

TL-SF1005LP

Router
Enjoy

Ideal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m^**—perfect for IP Camera deployment in large areas.

^**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Extend Mode Button

TL-SF1005LP ( Extend Mode On )

Up to 250 m

Extended is 10 Mbps/port

×4Up to Four IP Cameras

TL-SF1005LP ( Extend Mode Off )

100 m

Default is 100 Mbps/port

×4Up to Four IP Cameras

Priority Video
Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Compact Desktop Design
Wall-Mounting
Fanless Design

HARDWARE FEATURES
Interface	• 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1005LP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

^**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
