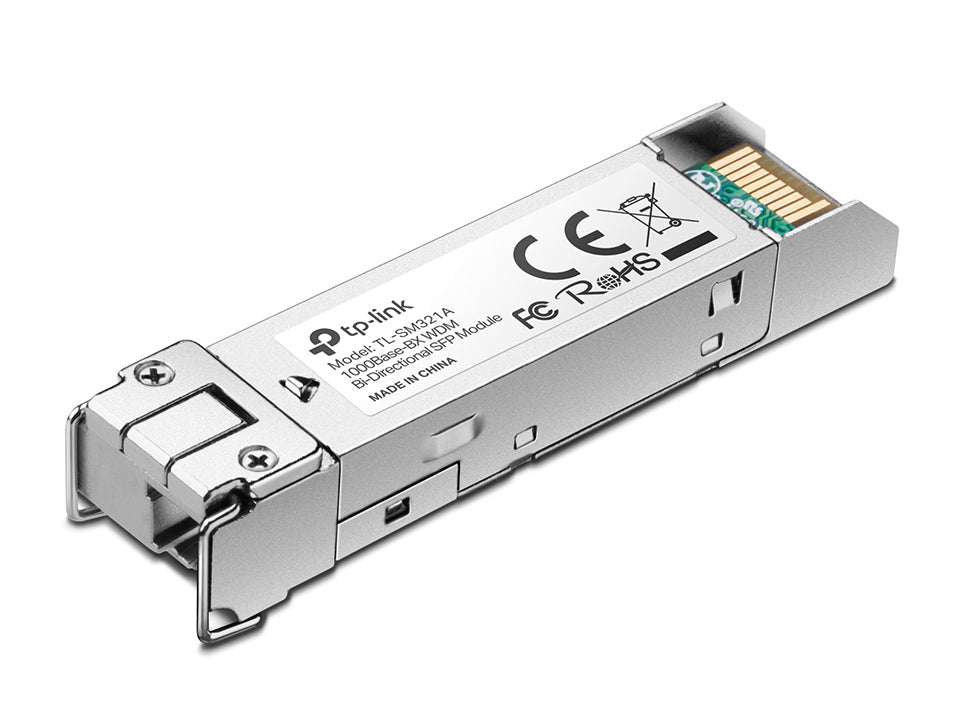

1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
What This Product Does
TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
| MEDIA CONVERTER & MODULE |
| Standards and Protocols |
IEEE 802.3z, TCP/IP
|
| Wave Length |
TX: 1550 nm
RX: 1310 nm
|
| Power Supply |
3.3 V
|
| Safety & Emission |
FCC, CE
|
| Cabel |
Single-Mode Fiber
|
| Fiber Type |
9/125 μm Single-Mode |
| Max. Cable Length |
20 KM |
| Data Rate |
1.25 Gbps
|
| Port Type |
LC Simplex |
| Environment |
Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
|
