TP-Link 8-Port 10/100Mbps Desktop Switch
- 8× 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer

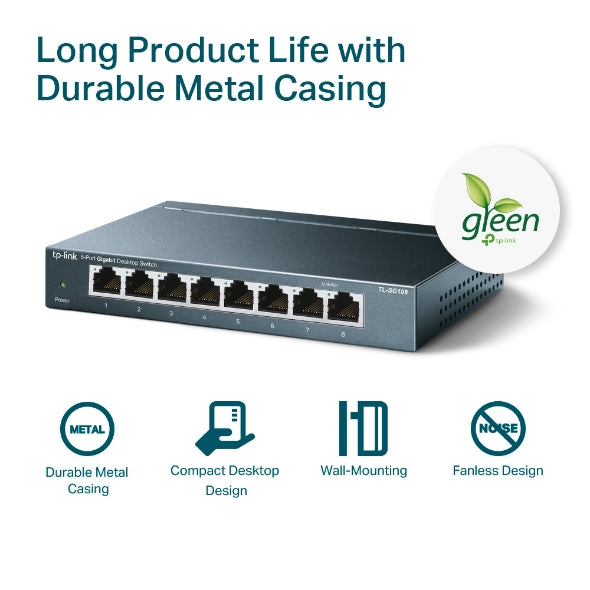

- Steel housing, desktop or wall-mounting design

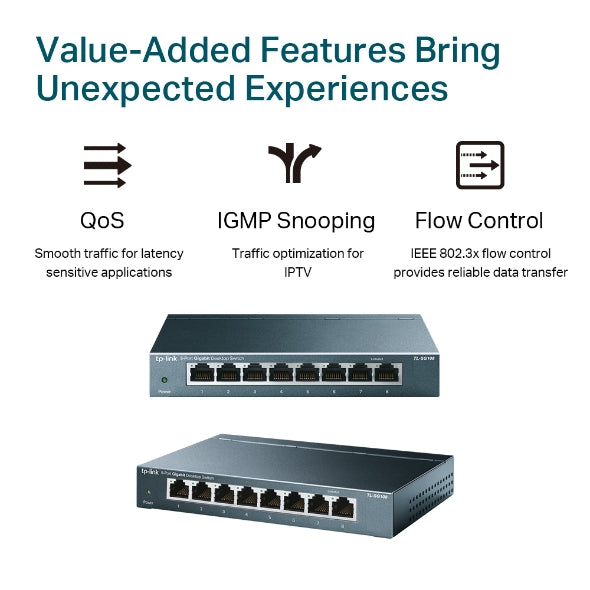

- Support 802.1p/DSCP QoS and IGMP Snooping function

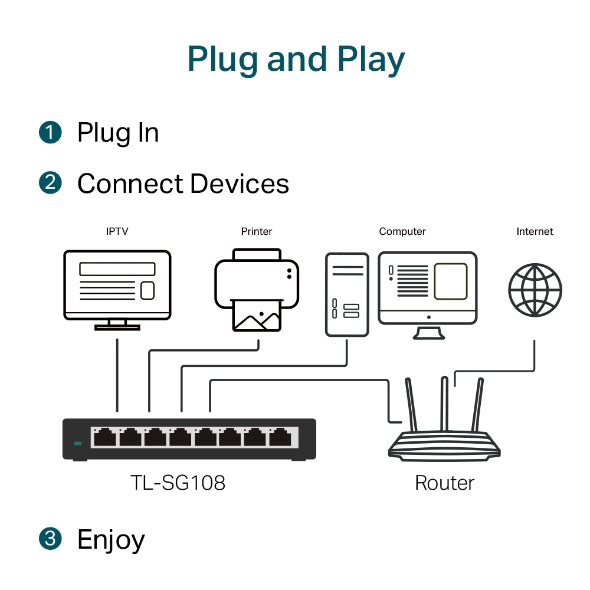

- Plug and play, no configuration needed
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
|
| Interface |
8× 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity |
Fanless |
| External Power Supply |
External Power Adapter (Output: 5VDC / 0.6A) |
| LED Indicator |
System Power
Link/Act indicators per port built into each RJ-45 port
|
| Dimensions ( W x D x H ) |
6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
| Max Power Consumption |
2.77 W(220V/50Hz) |
| Max Heat Dissipation |
9.45 BTU/h |
| PERFORMANCE |
| Packet Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
16 KB |
| SOFTWARE FEATURES |
| Advanced Features |
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping |
| Transfer Method |
Store and Forward |
| OTHERS |
| Certification |
CE, FCC ,RoHS |
| Package Contents |
8-Port 10/100 Mbps Desktop Switch
Power Adapter
Installation Guide |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing |
