- Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries is assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router
Archer MR400

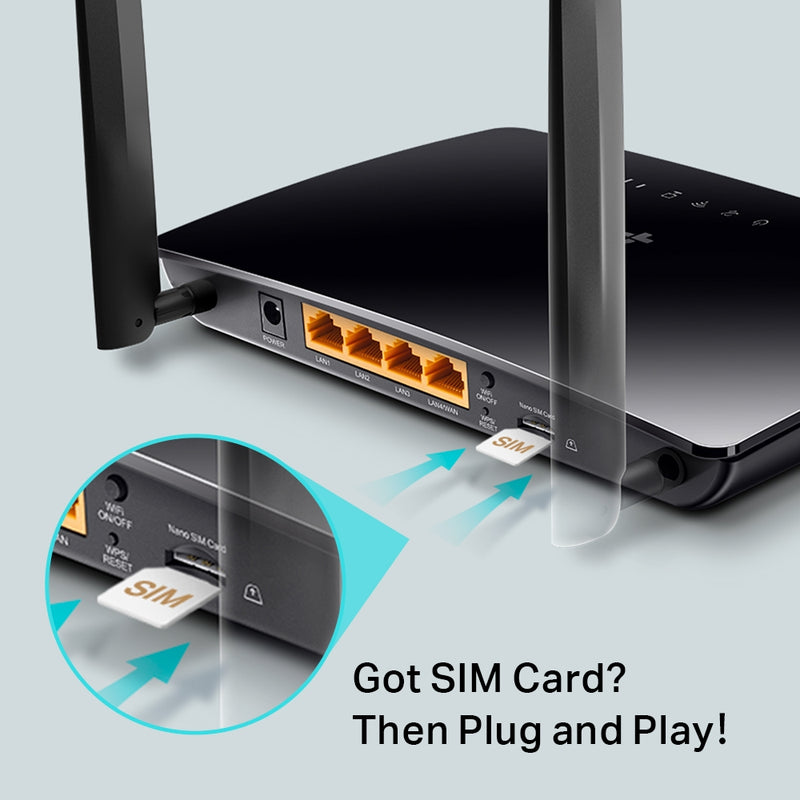

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Support TP-Link OneMesh™
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
*OneMesh Range Extender or Powerline Adapter sold separately.
Check for more compatible products >>
Personalize Your Home Network
Archer MR400 provides a wealth of advanced tools for personalized management.
Available WAN Connection
The WAN/LAN port enables Archer MR400 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
HARDWARE FEATURES |
Interface |
3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot |
Button |
WPS/Reset Button, WiFi On/Off Button, Power On/Off Button |
External Power Supply |
12V/1A |
Dimensions ( W x D x H ) |
7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
Antenna |
V2: 2 Internal 4G LTE Antennas V3/V1: 2 Detachable 4G LTE Antennas |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency |
2.4GHz and 5GHz |
Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
Reception Sensitivity |
5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm
2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
WAN Failover |
Yes |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type |
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
SOFTWARE FEATURES |
Quality of Service |
Bandwidth Control |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management reboot schedule |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN |
PPTP VPN, OpenVPN |
Access Control |
Parental Control, Local Management Control |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols |
Supports IPv4 and IPv6 |
Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
OTHERS |
Certification |
CE, RoHS |
Package Contents |
AC1200 Wireless Dual Band 4G LTE Router, Archer MR400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Micro SIM Card
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
