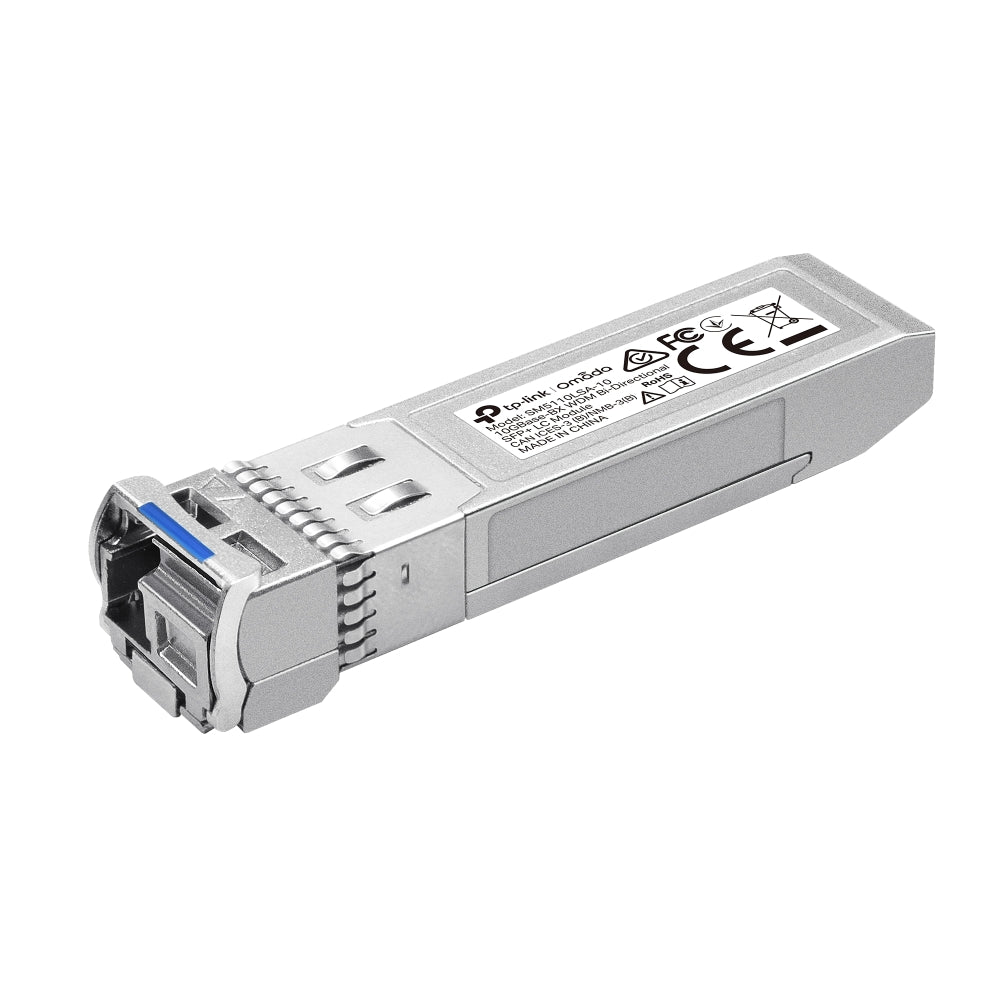

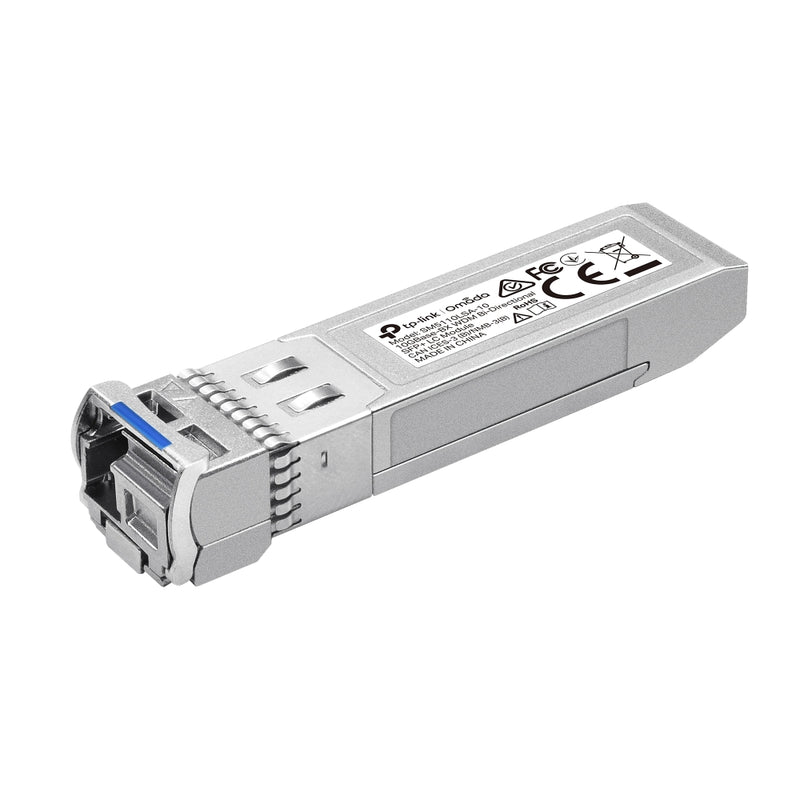

Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
What This Product Does
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
| PACKAGE CONTENTS |
| Package Contents |
• SM5110LSA-10
• Installation Guide |
| HARDWARE FEATURES |
| DDM |
Yes |
| Hot Swappable |
Yes |
| Dimensions ( W x D x H ) |
2.24*0.55*0.47 in (57*14*12.0 mm) |
| Transceiver |
| Standards and Protocols |
• IEEE 802.3ae
• SFF 8431, SFF 8432, SFF-8472 |
| Wavelength |
•TX: 1330nm
•RX: 1270nm
|
| Power Supply |
3.3V |
| Fiber Type |
9μm/125μm Single-Mode |
| Max. Cable Length |
10km |
| Data Rate |
10.3125 Gbps |
| Connector |
LC/UPC |
| Regulatory Compliance |
CE, FCC, RoHS |
| Environment |
• Operating Temperature: 0°C to 70°C (32–158 ℉)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing |
